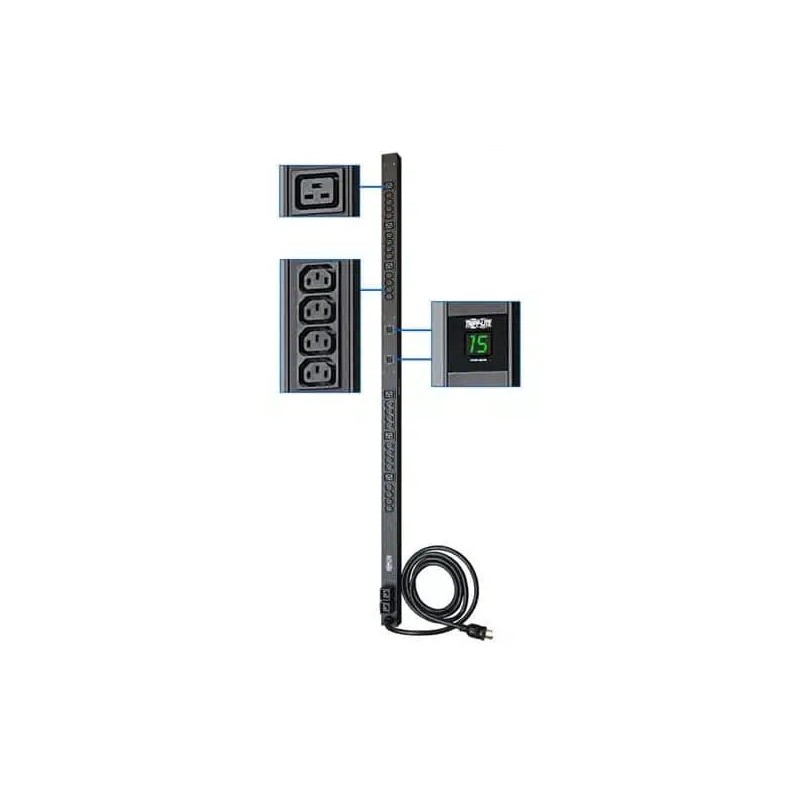

PDU Tripp-Lite Monofásico 5.5kW 208/230V 6-C19 & 24-C13 L6-30P 0U Vertical PDUMV30HV

Marca: Tripp-Lite
Tipo: PDU
SKU: PDUMV30HV

PDU Type Local Metered
INPUT
Input Phase Single-Phase
PDU Input Voltage 208; 230
Recommended Electrical Service Single-phase 30A 208/230V service
Maximum Input Amps 24
Maximum Input Amps Details Agency de-rated to 24A continuous
PDU Plug Type NEMA L6-30P
Input Cord Length (ft.) 10
Input Cord Length (m) 3.05
OUTPUT
Output Capacity (kW) 5.5
Output Capacity Details 5.5kW (230V), 5kW (208V) total capacity / 30A max (Agency de-rated to 24A),15A max per breakered outlet bank;
12A max per C13 outlet
Frequency Compatibility 50 / 60 Hz
Output Receptacles (24) C13; (6) C19
Output Nominal Voltage 208/230V
Overload Protection Two 15A breakers protect 15 outlets each
USER INTERFACE, ALERTS & CONTROLS
Front Panel LCD Display Set of 2 digital current meters continuously report PDU output current in amps for Bank 1 (15A max) and Bank 2
(15A max) outlets
LED Indicators Includes 2 built-in 2-character LED meters to display power consumption of items plugged into each separately
breakered 15A loading bank.
SURGE / NOISE SUPPRESSION
Automatic Shut-Off No
PHYSICAL
Material of Construction Aluminum
Rack Height 0U
Form Factors Supported 0U vertical installation in equipment racks, plus under-counter and wallmount
PDU Form Factor Vertical (0U)
Shipping Dimensions (hwd / in.) 5.00 x 3.00 x 65.00
Shipping Dimensions (hwd / cm) 12.70 x 7.62 x 165.10
Shipping Weight (lbs.) 11.40
Shipping Weight (kg) 5.17
Unit Dimensions (hwd / in.) 63.750 x 3.500 x 2.250
Unit Dimensions (hwd / cm) 162 x 5.7 x 9.5
Unit Weight (lbs.) 8.00
Unit Weight (kg) 3.63
ENVIRONMENTAL
Operating Temperature Range 32° to 104°F (0° to 40°C)
Storage Temperature Range -22° to 122°F (-30° to 50°C)
Relative Humidity 0% to 95% non-condensing
Operating Elevation 0-10000 ft. (0-3000 m)
STANDARDS & COMPLIANCE
Product Certifications RETIE (Colombia); NOM (Mexico); UL 62368-1
Product Compliance RoHS; FCC Part 15 Class A (USA)
