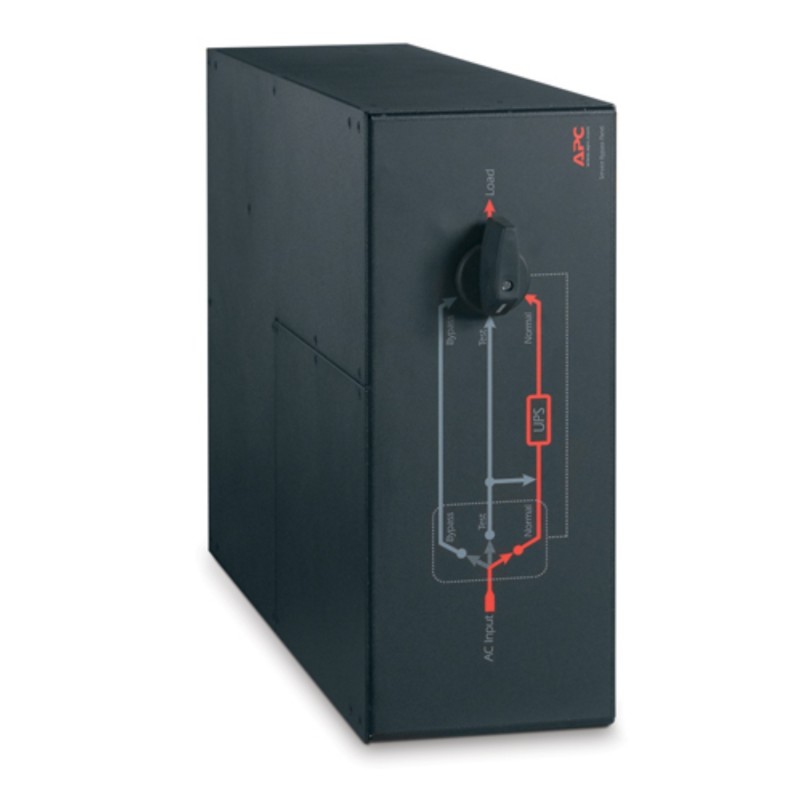

APC SBP16KP Service Bypass Panel 200/208/230/240V 100A MBB HW Input/Output

Marca: APC
SKU: SBP16KP

APC SBP16KP Service Bypass Panel 200/208/230/240V 100A MBB HW Input/Output.
Output
    Nominal Output Voltage
    120V , 200V , 208V , 230V
    Other Output Voltages
    220, 240
    Overload Protection
    Yes
    Maximum Total Current Draw
    100
    Output Connections
    (1) Hard Wire 3-wire (H N + G) (Battery Backup)
    (1) Hard Wire 3-wire (2PH + G) (Battery Backup)
Input
    Nominal Input Voltage
    200V , 208V , 230V , 480V 3PH
    Input frequency
    50/60 Hz
    Input Connections
    Hard Wire 3-wire (2PH + G), Hard Wire 3 wire (1PH+N+G), Hard Wire 4-wire (2PH+N+G), Hard Wire 5-wire (3PH + N + G)
    Acceptable Input Voltage
    200-240VAC
    Number of Power Cords
    1
    Load Power Factor Range
    0 to 1
    Load Capacity
    20000VA
    Maximum Input Current
    100A
    Maximum Line Current
    100A
Physical
    Maximum Height
    178mm , 17.8cm
    Maximum Width
    432mm , 43.2cm
    Maximum Depth
    660mm , 66.0cm
    Rack Height
    4U
    Net Weight
    21.36kg
    Shipping weight
    31.36kg
    Shipping Height
    305mm , 30.5cm
    Shipping Width
    610mm , 61.0cm
    Shipping Depth
    991mm , 99.1cm
    Color
    Black
Environmental
    Operating Environment
    -20 - 50 °C
    Operating Relative Humidity
    0 - 95 %
    Operating Elevation
    0-4500meters
    Storage Temperature
    -40 - 65 °C
    Storage Relative Humidity
    0 - 95 %
    Storage Elevation
    0-15000meters
Conformance
    Approvals
    CSA, EN 60950, GOST, IEC 60950, IEC 60950, UL 1778
