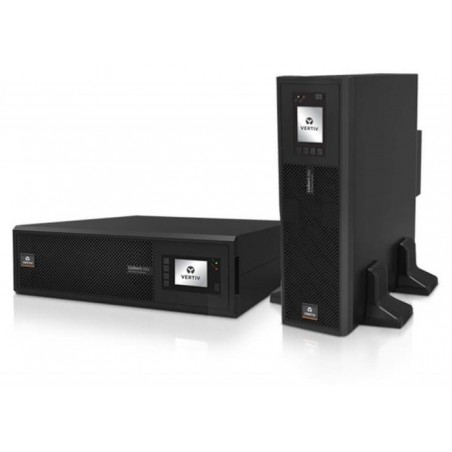

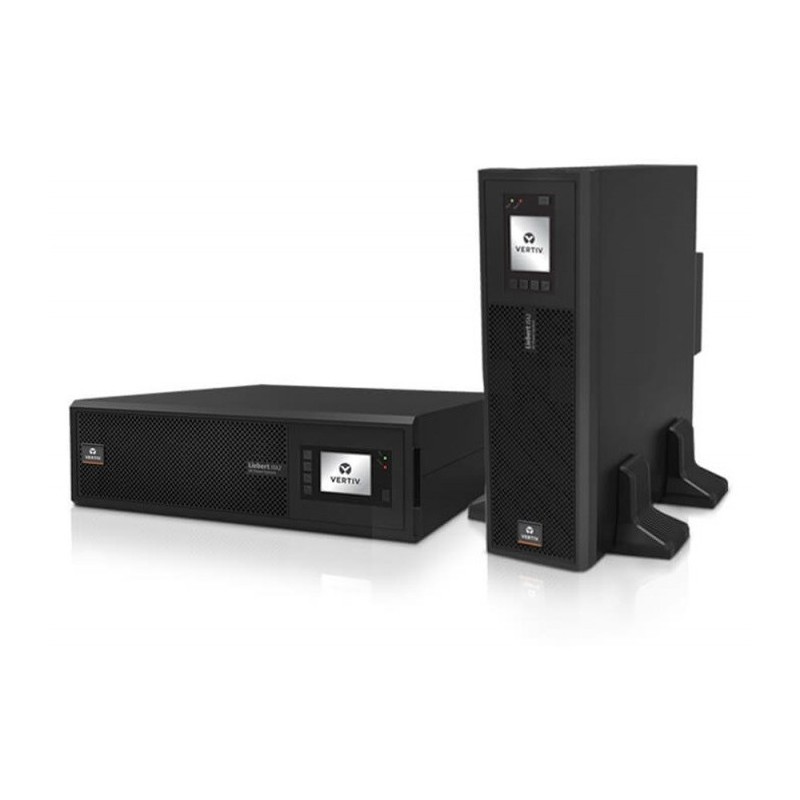

UPS Vertiv Liebert Trifásico 16000va 16000KW 16KVA 16KW 380V ITA-16K00AL3A02P0N

Standard/Long Backup Model     ITA-16K00AL1102P00 / ITA-16K00AL1202P00
Nominal Rating (kVA)     16
Nominal Input Voltage     380/400/415VAC 3-Phase,4Wire
Input Voltage Range (V)     176-288VAC at full load; 100-176VAC at linear derating; 100VAC at half load
Nominal Input Frequency (Hz)     50/60
Input Frequency Range (Hz)     40-70
Input Power Factor (kW/kVA)     0.99
Current THD at Full Linear Load (THDi%)     ≤5%
DC Bus Voltage     288-480VDC
Battery Charger Max Power (A)     13A (Long Backup) / 5A (Standard)
Battery Option     P/C: ITA-BCI0020K01 (built-in battery module of 16 block × 12V × 9AH)
Nominal Output Voltage (V)     220/230/240 (1-Phase)     380/400/415 (3-Phase)
Nominal Output Frequency (Hz)     50/60
Rated Power Factor (kW/kVA)     Unity
Voltage Harmonic Distortion (%)     <2% for Linear Loads & <5% for Non-linear Loads
Overload Capacity     At 25°C: 105% - 125%, 5min; 125% - 150%, 1min; 150%, 200ms
Crest Factor     3:1
Online Mode Efficiency     Up to 96.2%
ECO Mode Efficiency     Up to 99%
Dimensions     430 x 570 x 130
Weight     23
Noise at 1m (dBA)     ≤58
Operating Temperature (°C)     0 - 50
Relative Humidity (%RH)     5 - 95, non-condensing
Altitude (m)     ~3000m
General and Safety Requirements for UPS     IEC/EN 62040-1
EMC Requirements for UPS     IEC/EN 62040-2
UPS Classification According to IEC 62040-3     VFI-SS-111
