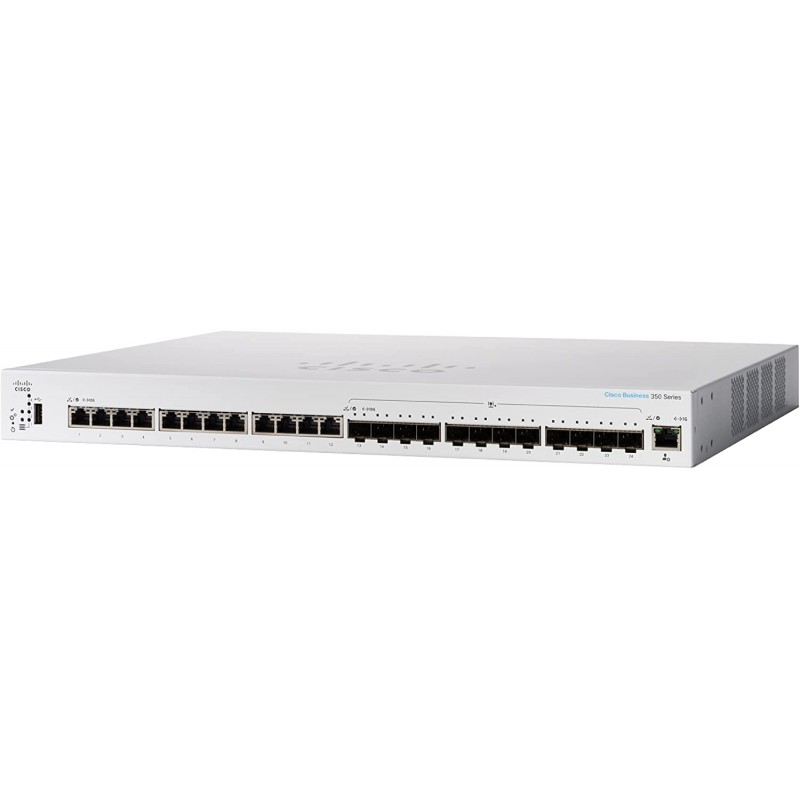

Switch Cisco L3 12x 10gbase-t + 12 X +10sfp Cbs350-24xts-na

SKU: CBS350-24XTS-NA

Product Description Cisco Business 350 Series 350-24XTS - switch - 24 ports - managed - rack-mountable
Device Type Switch - 24 ports - L3 - managed - stackable
Enclosure Type Rack-mountable
Subtype 10 Gigabit Ethernet
Ports 12 x 10GBase-T + 12 x 10 Gigabit SFP+
Performance Switching capacity: 480 Gbps
Forwarding performance (64-byte packet size): 240 Mpps
Capacity RPVST+ instances: 126
MSTP instances: 8
VLANs supported: 4094
ACL rules: 1024
Buffer capacity (MB): 3
MAC Address Table Size 16K entries
Jumbo Frame Support 2KB
Routing Protocol IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MLDv2, MLD, CIDR, MSTP, RSTP, STP
Remote Management Protocol : SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, http, https, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RSTP, TACACS+, RADIUS

Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3az
Power AC 100-240 V (50/60 Hz)
Dimensions (WxDxH) 17.3 in x 13.8 in x 1.7 in
Weight 10.67 lbs
Localization Colombia, Canada, Chile, Mexico, Latin America, United States
Manufacturer Warranty Limited lifetime warranty
General
Device Type Switch - 24 ports - L3 - managed - stackable
Enclosure Type Rack-mountable
Subtype 10 Gigabit Ethernet
Ports 12 x 10GBase-T + 12 x 10 Gigabit SFP+
Performance Switching capacity: 480 Gbps
Forwarding performance (64-byte packet size): 240 Mpps
Capacity RPVST+ instances: 126
MSTP instances: 8
VLANs supported: 4094
ACL rules: 1024
Buffer capacity (MB): 3
MAC Address Table Size 16K entries
Jumbo Frame Support 2KB
Max Units In A Stack 4
Routing Protocol IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MLDv2, MLD, CIDR, MSTP, RSTP, STP
Remote Management Protocol SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, http, https, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RSTP, TACACS+, RADIUS
Encryption Algorithm SSL
Authentication Method Secure Shell (SSH), RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2)

Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3az
Processor X ARM: 800 MHz
RAM 512 MB
Flash Memory 256 MB
Status Indicators Status, link/activity/speed
Expansion / Connectivity
Interfaces 12 x 10GBase-T RJ-45
12 x 10GBase-X SFP+
1 x USB Type A
1 x management (Gigabit LAN) RJ-45
1 x console RJ-45
Power
Power Device Internal power supply
Voltage Required AC 100-240 V (50/60 Hz)
Miscellaneous
Rack Mounting Kit Included
MTBF 1,372,246 hours
Compliant Standards UL 60950, CSA 22.2, FCC CFR47 Part 15 B Class A, USGv6
Localization Colombia, Canada, Chile, Mexico, Latin America, United States
Dimensions & Weight
Width 17.3 in
Depth 13.8 in
Height 1.7 in
Weight 10.67 lbs
Manufacturer Warranty
Service & Support Limited warranty - replacement - lifetime - response time: next business day
Technical support - web support - 1 year
Technical support - phone consulting - 1 year
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 122 °F
Humidity Range Operating 10 - 90% (non-condensing)
Min Storage Temperature -13 °F
Max Storage Temperature 158 °F
Humidity Range Storage 10 - 90% (non-condensing)
