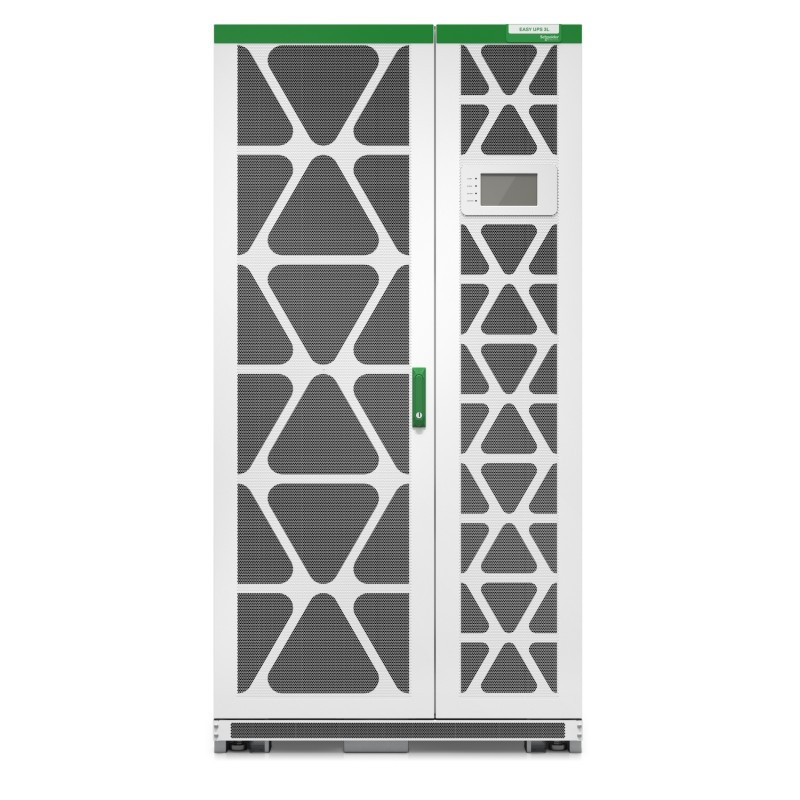

UPS APC Trifásico Easy UPS 3L 600KVA 600KW 400V Startup 5x8 E3LUPS600KHS

SKU: E3LUPS600KHS

MainMain Input Voltage
    400 V 3 phases
Other Input Voltage
    380 V
415 V
Main Output Voltage
    400 V 3 phases
Other Output Voltage
    380 V
415 V
Rated power in W
    600 kW
Rated power in VA
    600 kVA
provided equipment
    Dust filter
Installation manual
Start-up service
Physicalcolour
    White (RAL 9003)
Height
    197 cm
width
    100 cm
Depth
    85 cm
Net weight
    720 kg
USB compatible
    Yes

Inputmaximum input current
    1079 A
max short time withstand current
    35 kA
input harmonic distortion
    Less than 3 % for full load
load power factor
    0.5 leading to 0.5 lagging without derating
Input Power Factor at Full Load
    0.99
input voltage limits
    323...477 V
network frequency
    40...70 Hz

Maximum configurable power in VA
    600 kVA
Maximum configurable power in W
    600 kW
output frequency
    50 Hz sync to mains
60 Hz sync to mains
output harmonic distortion
    < 2% linear load and < 4% non-linear load
output overload operation
    10 minutes at 125% and 60 seconds at 150%
UPS type
    Double conversion online
Conformanceproduct certifications
    CE
EAC
RCM
EnvironmentalAmbient air temperature for operation
    0…30 °C
relative humidity
    0…95 % non-condensing
Operating altitude
    0...4921 ft
Ambient air temperature for storage
    -25…55 °C
storage Relative Humidity
    Non-condensing 0…95 %
Storage altitude
    0.00…14999.82 m
Acoustic level
    72 dB
Heat dissipation
    126932 Btu/h
IP degree of protection
    IP20
Batteries & RuntimeEfficiency

View Efficiency Graph
battery type
    External battery system
Battery voltage
    +/- 216...+/- 300 V
maximum short-circuit current
    35 kA
discharge battery voltage
    +/- 172.8...+/- 240 V
Communications & ManagementControl panel
    Touch screen LCD user interface
Packing UnitsUnit Type of Package 1
    PCE
Number of Units in Package 1
    1
Package 1 Height
    211.5 cm
Package 1 Width
    120 cm
Package 1 Length
    101.5 cm
Package 1 Weight
    768 kg
