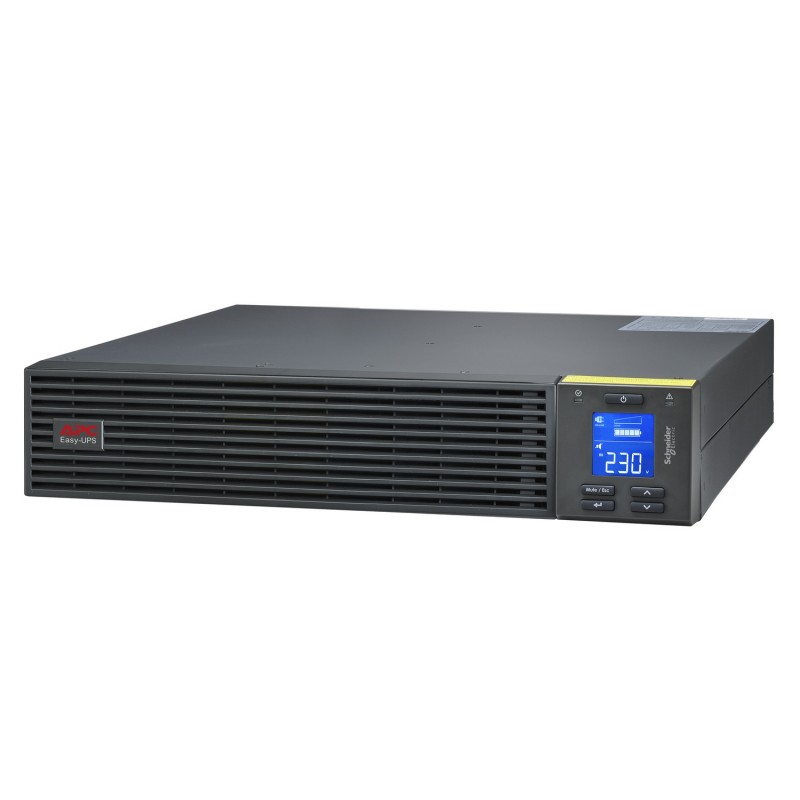

UPS APC OnLine 3000VA 2700W 3KVA 2U 230V 6x IEC C13 + 1x IEC C19 outlets SRV3KRIRK-E

Marca: APC
Modelo: UPS OnLine
SKU: SRV3KRIRK-E

Specifications
OverviewPresentation
    High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.
Main
Run time for load
W
Min-max: 270-2700 W

2min 54s
Max. Capacity Used

100 %
Main input voltage
    230 V AC 1 phase
Other input voltage
    220 V
240 V
Input connection
    IEC 60320 C20
Efficiency at full load
    110...285 V 40% load
180...285 V full load
Input frequency
    40...70 Hz auto sensing
Output voltage
    230 V AC 1 phase
Other output voltage
    220 V
240 V
Rated power in W
    2700 W
Rated power in VA
    3000 VA
Output connection
    6 IEC 60320 C13
1 IEC 60320 C19
Bypass type
    Internal bypass (automatic and manual)
Crest factor
    3 : 1
Harmonic distortion
    3 %
Maximum configurable power in VA
    3000 VA
Maximum configurable power in W
    2700 W
UPS topology
    On-Line
Waveform type
    Sine wave
Efficiency
    88 % (full load)
Output frequency
    50/60 Hz +/- 3 Hz sync to mains
Replacement battery

APCRBCV202
GraphsRun Time

View Runtime Graph
Efficiency

View Efficiency Graph
ComplementaryAdditional information
    Configurable for 220 : 230 or 240 nominal output voltage
Battery type
    Lead-acid internal included
Control panel
    Multifunction LCD status and control console
Free slot
    1
Alarm
    Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
UPS connectivity
    Serial port
USB port
Available expansion slot
Surge energy rating
    945 J
Number of rack unit
    2U
Cable length
    1.5 m
Number of cables
    1
Color
    Black (RAL 7010)
Height
    86 mm
Width
    438 mm
Depth
    632 mm
Product weight
    28.5 kg
Mounting location
    Front
Mounting preference
    Lower
Mounting mode
    Rack-mounted
USB compatible
    Yes
Mounting position
    Horizontal
Mounting mode
    Rack-mounted with included kit
Max runtime
    3 min
Number of power module filled slots
    0
Number of power module free slots
    0
Redundant
    No
Range of product
    Easy UPS On-Line
Product or component type
    Uninterruptible power supply (UPS)
EnvironmentProduct certification
    CE
UKCA
TISI
Standard
    EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018
Ambient air temperature for operation
    0…40 °C
Ambient air temperature for storage
    -20…50 °C
Storage altitude
    0…15000 m
IP protection
    IP20
Relative humidity
    0…95 % non-condensing
Storage relative humidity
    0…95 % non-condensing
Acoustic level
    50 dBA
Heat dissipation
    1024 Btu/h
Operating altitude
    0...3000 m
Batteries & RuntimeBattery type
    Lead-acid battery
Battery voltage
    72 V
Extendable runtime
    0
Included battery module
    0
Empty battery slot
    0
Typical recharge time
    4 h
Battery life
    3…5 year(s)
Battery charging power
    60 W rated
Battery power in VAh
    528 VAh runtime
Packing UnitsUnit Type of Package 1
    PCE
Number of Units in Package 1
    1
Package 1 Height
    22.800 cm
Package 1 Width
    79.400 cm
Package 1 Length
    57.000 cm
Package 1 Weight
    32.500 kg
Contractual warrantyWarranty (in months)
    24
